| Place of Origin: | China |
|---|---|
| Brand Name: | sunnranpack |
| Minimum Order Quantity: | 1 |
| Price: | negotiable |
| Delivery Time: | 90 days |
| Payment Terms: | L/C, T/T, D/P, D/A |
| Supply Ability: | 60 |

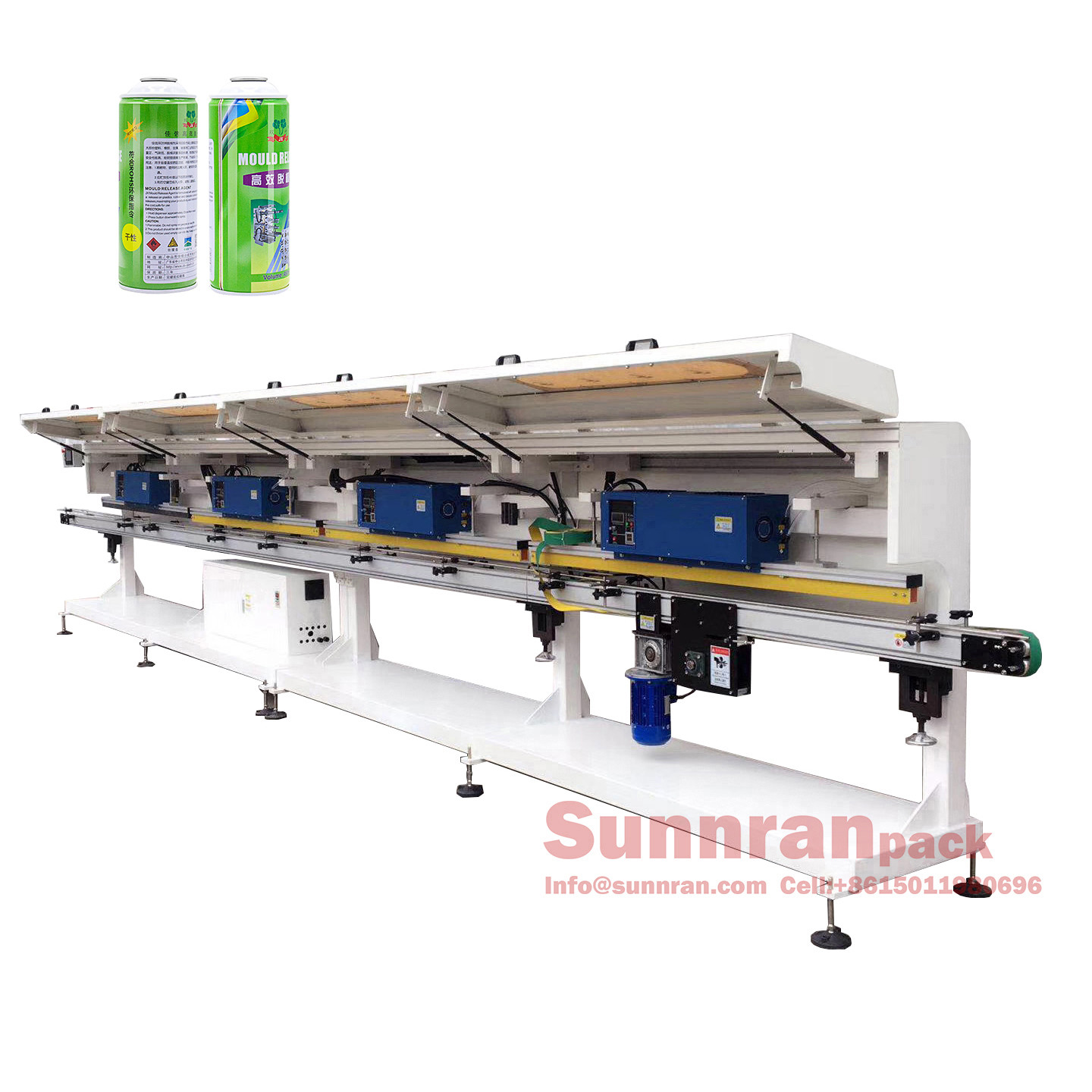

Can body curing oven Food Aerosol Paint can drying oven
The Tin Can Body Curing Induction Oven is an advanced equipment used in the manufacturing process of tin cans. This machine is used to dry the lacquer and powder which is sprayed on the internal and external of the welding seam. It utilizes induction heating technology to cure the body of the tin cans, dramatically saving the power energy.
Induction heating is a process that uses electromagnetic fields to generate heat directly within the material being heated. In the case of the Tin Can Body Curing Induction Oven, the electromagnetic fields are generated by induction coils, which are placed around the curing chamber.
The tin can bodies are placed inside the curing chamber, and the induction coils generate a high-frequency alternating magnetic field. This magnetic field induces electrical currents within the can bodies, causing them to heat up rapidly and uniformly.
| Output frequency | Diameter | Max power | Cooling type |
| 20-30Khz | 52-180mm | 1.5Kw/ heating coil | Air cooling / water cooling |
